Java并发编程之线程控制手段

发表于 更新于 分类于 ， ，
本文字数： 16k 阅读时长 ≈ 14 分钟

CountDownLatch

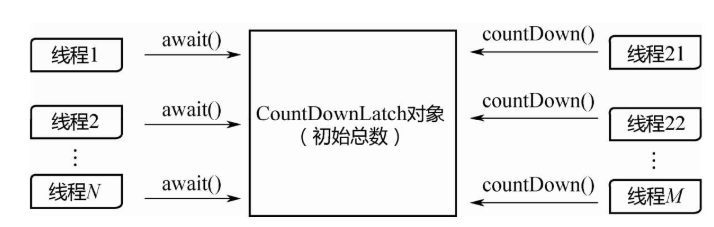

CountDownLatch类位于java.util.concurrent包下，利用它可以实现类似计数器的功能。比如有一个任务 A，它要等待其他 4 个任务执行完毕之后才能执行，此时就可以利用 CountDownLatch 来实现这种功能了。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
package com.sunld;

import java.util.concurrent.CountDownLatch;

public class TestCountDownLatch {

	public static void main(String[] args) {
		final CountDownLatch latch = new CountDownLatch(2);

		new Thread() {
			public void run() {
				System.out.println("子线程" + Thread.currentThread().getName() + "正在执行");
				try {
					Thread.sleep(3000);
				} catch (InterruptedException e) {
					e.printStackTrace();
				}
				System.out.println("子线程" + Thread.currentThread().getName() + "执行完毕");
				latch.countDown();
			};
		}.start();

		new Thread() {
			public void run() {
				System.out.println("子线程" + Thread.currentThread().getName() + "正在执行");
				try {
					Thread.sleep(3000);
				} catch (InterruptedException e) {
					e.printStackTrace();
				}
				System.out.println("子线程" + Thread.currentThread().getName() + "执行完毕");
				latch.countDown();
			};
		}.start();
		System.out.println("等待 2 个子线程执行完毕...");
		try {
			latch.await();
		} catch (InterruptedException e) {
			e.printStackTrace();
		}
		System.out.println("2 个子线程已经执行完毕");
		System.out.println("继续执行主线程");
	}

}

await方法

1
2
3
4
5
6
7
8
9

public void await() throws InterruptedException {
	sync.acquireSharedInterruptibly(1);
}

public boolean await(long timeout, TimeUnit unit)
	throws InterruptedException {
	return sync.tryAcquireSharedNanos(1, unit.toNanos(timeout));
}

AbstractQueuedSynchronizer.acquireSharedInterruptibly实现

1
2
3
4
5
6
7
8
public final void acquireSharedInterruptibly(int arg)
		throws InterruptedException {
	if (Thread.interrupted())
		throw new InterruptedException();
	// tryAcquireShared由具体的子类实现
	if (tryAcquireShared(arg) < 0)
		doAcquireSharedInterruptibly(arg);
}

CountDownLatch.Sync.tryAcquireShared

1
2
3
4
protected int tryAcquireShared(int acquires) {
	// 只要state！=0，调用await（）方法的线程便会被放入AQS的阻塞队列，进入阻塞状态
	return (getState() == 0) ? 1 : -1;
}

countDown方法

1
2
3
public void countDown() {
	sync.releaseShared(1);
}

AbstractQueuedSynchronizer.releaseShared实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
/**
* Releases in shared mode.  Implemented by unblocking one or more
* threads if {@link #tryReleaseShared} returns true.
*
* @param arg the release argument.  This value is conveyed to
*        {@link #tryReleaseShared} but is otherwise uninterpreted
*        and can represent anything you like.
* @return the value returned from {@link #tryReleaseShared}
*/
public final boolean releaseShared(int arg) {
	if (tryReleaseShared(arg)) {// 由具体子类实现
		doReleaseShared();//一次性唤醒队列中所有阻塞的线程
		return true;
	}
	return false;
}

CountDownLatch.Sync.tryReleaseShared

1
2
3
4
5
6
7
8
9
10
11
protected boolean tryReleaseShared(int releases) {
	// Decrement count; signal when transition to zero
	for (;;) {
		int c = getState();
		if (c == 0)
			return false;
		int nextc = c-1;
		if (compareAndSetState(c, nextc))
			return nextc == 0;
	}
}

CountDownLatch总结

因为是基于AQS 阻塞队列来实现的，所以可以让多个线程都阻塞在state=0条件上，通过countDown（）一直累减state，减到0后一次性唤醒所有线程。如图4-4所示，假设初始总数为M，N个线程await（），M个线程countDown（），减到0之后，N个线程被唤醒。

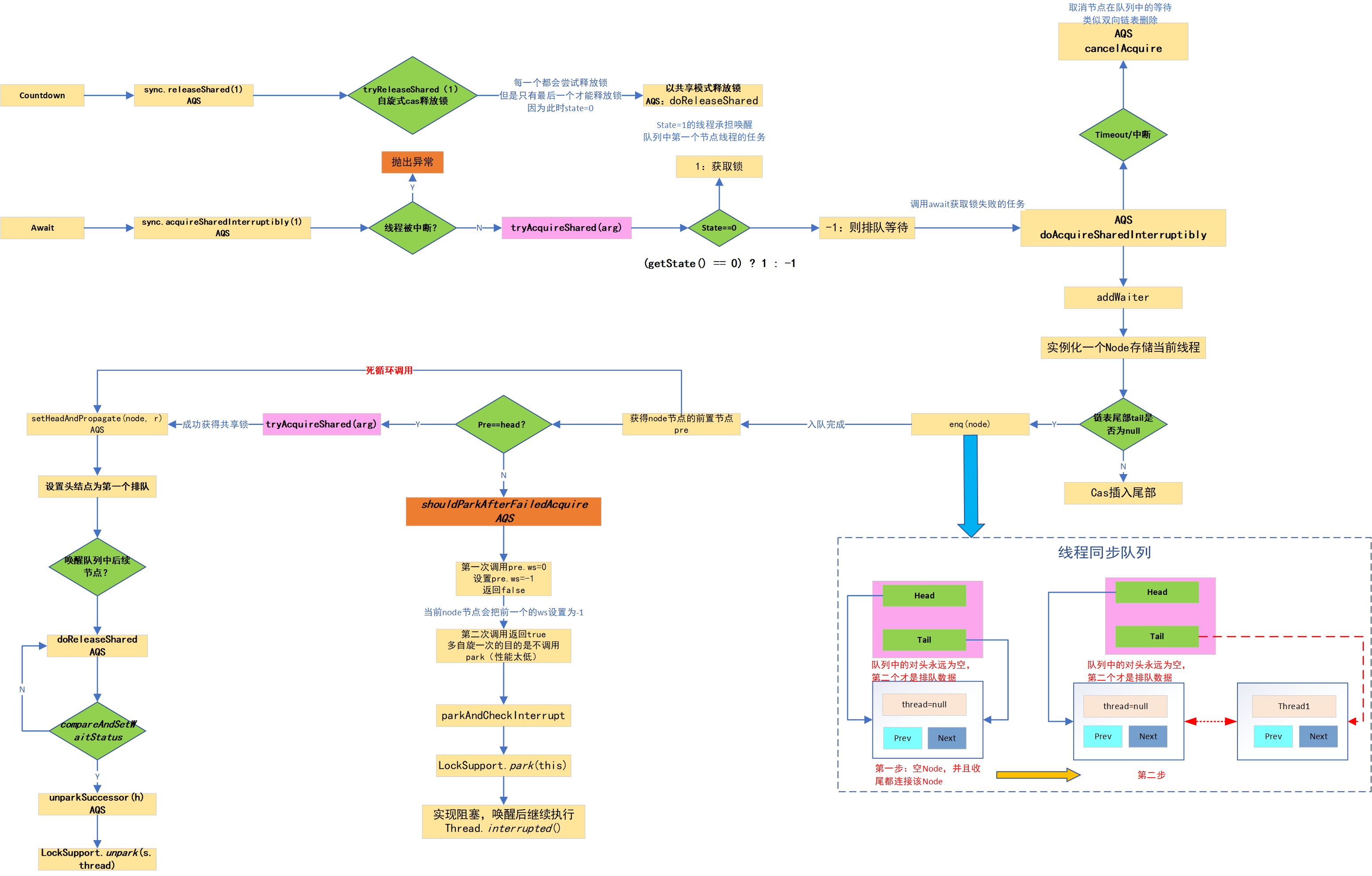

CountDownLatch锁获取释放流程图

配合线程池使用

ExecutorService作为一个线程池，然后利用CountDownLatch可以让指定数量的线程都执行完再执行主线程的特性。就可以实现多线程提速了。
套路是这样的：
1、实现runnable接口实现一个run方法，里面执行我们的耗时复杂业务操作。
2、在循环里给list里的每个对象分配一个线程
3、使用CountDownLatch让主线程等待工作线程全部执行完毕后之后，再继续执行。

参考实例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
package com.sunld.thread;

import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.Callable;
import java.util.concurrent.CountDownLatch;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;
/**
 * 随机生成一个数组，然后并发计算数组求和,注意：未处理中断和线程池关闭
 * @author Theodore SUN
 *
 */
public class RunnerTask implements Callable<Integer> {
	private List<Integer> paramList;
	private CountDownLatch latch;

	public RunnerTask(List<Integer> paramList, CountDownLatch latch) {
		this.paramList = paramList;
		this.latch = latch;
	}
	@Override
	public Integer call() throws Exception {
		System.out.println(Thread.currentThread().getName() + "====start====");
		int sum = 0;
		try {
			Thread.sleep(1000);
			for(Integer i : paramList) {
				sum += i.intValue();
			}
		}finally {
			if (this.latch != null) {
				latch.countDown();
			}
		}
		System.out.println(Thread.currentThread().getName() + "====end====");
		return sum;
	}

	public static void main(String[] args) throws InterruptedException {
		List<List<Integer>> taskList = new ArrayList<>();
		for(int i = 0; i < 10; i++) {
			List<Integer> list = new ArrayList<Integer>();
			for(int j = 0; j < 20; j++) {
				list.add((i + 1) * (j + 1));
			}
			taskList.add(list);
		}
		List<Integer> returnList = Test.multiThreadProcess(taskList);
		System.out.println(returnList);
		System.exit(0);
	}
}

class Test {
	private static final ExecutorService taskPool = Executors.newFixedThreadPool(4);
	public static List<Integer> multiThreadProcess(List<List<Integer>> taskList) throws InterruptedException {
		List<Integer> list = new ArrayList<Integer>();
		List<Future<Integer>> list1 = new ArrayList<>();
		if (taskList != null && !taskList.isEmpty()) {
			// 创建闭锁，计数器大小为任务多列的长多
			CountDownLatch latch = new CountDownLatch(taskList.size());
			for (List<Integer> item : taskList) {
				list1.add(taskPool.submit(new RunnerTask(item, latch)));
			}
			// 主线程开始等待，直到计数器大小为0，返回结果
			latch.await();
			for(Future<Integer> f : list1) {
				try {
					list.add(f.get());
				} catch (ExecutionException e) {
					e.printStackTrace();
				}
			}
			return list;
		}
		taskPool.shutdown();
		return new ArrayList<Integer>();
	}

}

CyclicBarrier

  1. 回环栅栏-等待至 barrier 状态再全部同时执行
  2. 可重用（回环）：当所有等待线程都被释放以后可重复使用
  3. 响应中断：线程没有到齐，如果有线程收到了中断信号，所有阻塞的线程也会被唤醒（breakBarrier）。然后count被重置为初始值（parties），重新开始。
  4. 我们暂且把这个状态就叫做 barrier，当调用 await()方法之后，线程就处于 barrier 了。
  5. 基于ReentrantLock+Condition实现
  6. barrierAction只会被第n个线程执行1次（在唤醒其他n-1个线程之前）

CyclicBarrier常用方法

CyclicBarrier 中最重要的方法就是 await 方法，它有 2 个重载版本：

  1. public int await()：用来挂起当前线程，直至所有线程都到达 barrier 状态再同时执行后续任务；
  2. public int await(long timeout, TimeUnit unit)：让这些线程等待至一定的时间，如果还有线程没有到达 barrier 状态就直接让到达 barrier 的线程执行后续任务。

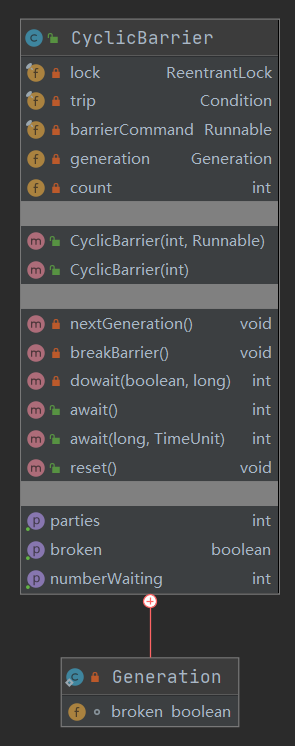

CyclicBarrier源码分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215

public class CyclicBarrier {
    /**
     * Each use of the barrier is represented as a generation instance.
     * The generation changes whenever the barrier is tripped, or
     * is reset. There can be many generations associated with threads
     * using the barrier - due to the non-deterministic way the lock
     * may be allocated to waiting threads - but only one of these
     * can be active at a time (the one to which {@code count} applies)
     * and all the rest are either broken or tripped.
     * There need not be an active generation if there has been a break
     * but no subsequent reset.
     */
    private static class Generation {
        boolean broken = false;
    }

    /** The lock for guarding barrier entry */
    private final ReentrantLock lock = new ReentrantLock();
    /** Condition to wait on until tripped */
    // 用于线程之间互相唤醒
    private final Condition trip = lock.newCondition();
    /** The number of parties */
    // 总线程数
    private final int parties;
    /* The command to run when tripped */
    private final Runnable barrierCommand;
    /** The current generation */
    private Generation generation = new Generation();

    /**
     * Number of parties still waiting. Counts down from parties to 0
     * on each generation.  It is reset to parties on each new
     * generation or when broken.
     */
    private int count;

    /**
     * Updates state on barrier trip and wakes up everyone.
     * Called only while holding lock.
     */
    private void nextGeneration() {
        // signal completion of last generation
        trip.signalAll();
        // set up next generation
        count = parties;
        generation = new Generation();
    }

    /**
     * Sets current barrier generation as broken and wakes up everyone.
     * Called only while holding lock.
     */
    private void breakBarrier() {
        generation.broken = true;
        count = parties;
        trip.signalAll();
    }

    /**
     * Main barrier code, covering the various policies.
     */
    private int dowait(boolean timed, long nanos)
        throws InterruptedException, BrokenBarrierException,
               TimeoutException {
        final ReentrantLock lock = this.lock;
        lock.lock();
        try {
            final Generation g = generation;

            if (g.broken)
                throw new BrokenBarrierException();

            if (Thread.interrupted()) {// 响应中断
                breakBarrier();//唤醒所有被阻塞线程
                throw new InterruptedException();
            }

            // 每个线程调用一次await则执行一次--count，当count==0时则唤醒其他所有线程
            int index = --count;
            if (index == 0) {  // tripped
                boolean ranAction = false;
                try {
                    final Runnable command = barrierCommand;
                    if (command != null)// 一起唤醒之后可以执行一次回调
                        command.run();
                    ranAction = true;
                    // 可重用
                    // 唤醒其他所有线程，并且复原count
                    nextGeneration();
                    return 0;
                } finally {
                    if (!ranAction)
                        breakBarrier();
                }
            }

            // loop until tripped, broken, interrupted, or timed out
            for (;;) {// count！=0的处理，需要阻塞自己
                try {
                    if (!timed)
                        trip.await();//阻塞自己的时候释放锁，别的线程就可以执行该方法
                    else if (nanos > 0L)
                        nanos = trip.awaitNanos(nanos);
                } catch (InterruptedException ie) {
                    if (g == generation && ! g.broken) {
                        breakBarrier();
                        throw ie;
                    } else {
                        // We're about to finish waiting even if we had not
                        // been interrupted, so this interrupt is deemed to
                        // "belong" to subsequent execution.
                        Thread.currentThread().interrupt();
                    }
                }

                if (g.broken)
                    throw new BrokenBarrierException();

                if (g != generation)
                    return index;

                if (timed && nanos <= 0L) {
                    breakBarrier();
                    throw new TimeoutException();
                }
            }
        } finally {
            lock.unlock();
        }
    }

    /**
     * Creates a new {@code CyclicBarrier} that will trip when the
     * given number of parties (threads) are waiting upon it, and which
     * will execute the given barrier action when the barrier is tripped,
     * performed by the last thread entering the barrier.
     *
     * @param parties the number of threads that must invoke {@link #await}
     *        before the barrier is tripped
     * @param barrierAction the command to execute when the barrier is
     *        tripped, or {@code null} if there is no action
     * @throws IllegalArgumentException if {@code parties} is less than 1
     */
    public CyclicBarrier(int parties, Runnable barrierAction) {
        if (parties <= 0) throw new IllegalArgumentException();
        this.parties = parties;
        this.count = parties;
        this.barrierCommand = barrierAction;
    }

    /**
     * Returns the number of parties required to trip this barrier.
     *
     * @return the number of parties required to trip this barrier
     */
    public int getParties() {
        return parties;
    }

    /**
     * Queries if this barrier is in a broken state.
     *
     * @return {@code true} if one or more parties broke out of this
     *         barrier due to interruption or timeout since
     *         construction or the last reset, or a barrier action
     *         failed due to an exception; {@code false} otherwise.
     */
    public boolean isBroken() {
        final ReentrantLock lock = this.lock;
        lock.lock();
        try {
            return generation.broken;
        } finally {
            lock.unlock();
        }
    }

    /**
     * Resets the barrier to its initial state.  If any parties are
     * currently waiting at the barrier, they will return with a
     * {@link BrokenBarrierException}. Note that resets <em>after</em>
     * a breakage has occurred for other reasons can be complicated to
     * carry out; threads need to re-synchronize in some other way,
     * and choose one to perform the reset.  It may be preferable to
     * instead create a new barrier for subsequent use.
     */
    public void reset() {
        final ReentrantLock lock = this.lock;
        lock.lock();
        try {
            breakBarrier();   // break the current generation
            nextGeneration(); // start a new generation
        } finally {
            lock.unlock();
        }
    }

    /**
     * Returns the number of parties currently waiting at the barrier.
     * This method is primarily useful for debugging and assertions.
     *
     * @return the number of parties currently blocked in {@link #await}
     */
    public int getNumberWaiting() {
        final ReentrantLock lock = this.lock;
        lock.lock();
        try {
            return parties - count;
        } finally {
            lock.unlock();
        }
    }
}

参考代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
package com.sunld;

import java.util.concurrent.BrokenBarrierException;
import java.util.concurrent.CyclicBarrier;

public class TestCyclicBarrier {

	public static void main(String[] args) {
		int N = 4;
        CyclicBarrier barrier  = new CyclicBarrier(N);
        for(int i=0;i<N;i++) {
        	new Writer(barrier).start();
        }
	}

	static class Writer extends Thread{
		private CyclicBarrier cyclicBarrier;
		public Writer(CyclicBarrier cyclicBarrier) {
			this.cyclicBarrier = cyclicBarrier;
		}

		@Override
		public void run() {
			try {
				//以睡眠来模拟线程需要预定写入数据操作
				Thread.sleep(5000);
				System.out.println("线程"+Thread.currentThread().getName()
						+"写入数据完毕，等待其他线程写入完毕");
				cyclicBarrier.await();
			} catch (InterruptedException e) {
				e.printStackTrace();
			} catch(BrokenBarrierException e){
				e.printStackTrace();
			}
			System.out.println("所有线程写入完毕，继续处理其他任务，比如数据操作");
		}
	}
}

/**
* 线程Thread-1写入数据完毕，等待其他线程写入完毕
* 线程Thread-0写入数据完毕，等待其他线程写入完毕
* 线程Thread-2写入数据完毕，等待其他线程写入完毕
* 线程Thread-3写入数据完毕，等待其他线程写入完毕
* 所有线程写入完毕，继续处理其他任务，比如数据操作
* 所有线程写入完毕，继续处理其他任务，比如数据操作
* 所有线程写入完毕，继续处理其他任务，比如数据操作
* 所有线程写入完毕，继续处理其他任务，比如数据操作
**/

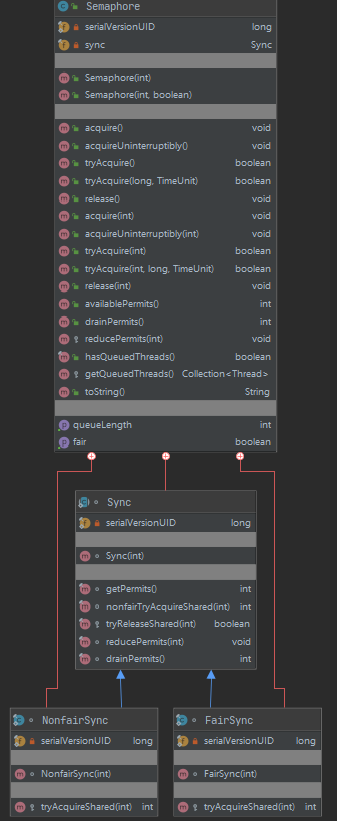

Semaphore

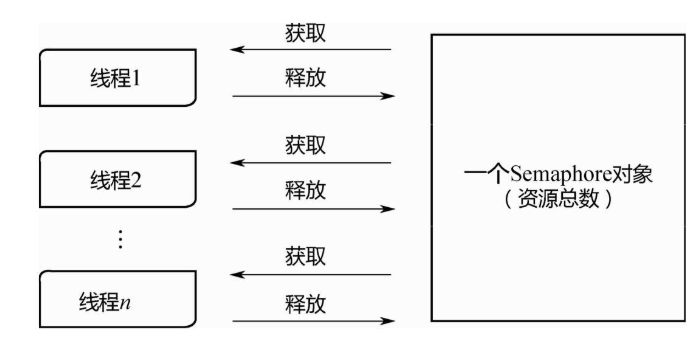

  1. 信号量，Semaphore 可以控制同时访问的线程个数
  2. 通过 acquire() 获取一个许可，如果没有就等待，而 release() 释放一个许可。
  3. Semaphore 是一种基于计数的信号量。它可以设定一个阈值，基于此，多个线程竞争获取许可信号，做完自己的申请后归还，超过阈值后，线程申请许可信号将会被阻塞。
  4. Semaphore 可以用来构建一些对象池，资源池之类的，比如数据库连接池实现互斥锁（计数器为1）。我们也可以创建计数为 1 的 Semaphore，将其作为一种类似互斥锁的机制，这也叫二元信号量，表示两种互斥状态。

Semaphore常用方法

  1. public void acquire(): 用来获取一个许可，若无许可能够获得，则会一直等待，直到获得许可。
  2. public void acquire(int permits):获取 permits 个许可
  3. public void release() { } :释放许可。注意，在释放许可之前，必须先获获得许可。
  4. public void release(int permits) { }:释放 permits 个许可

上面 4 个方法都会被阻塞，如果想立即得到执行结果，可以使用下面几个方法

  1. public boolean tryAcquire():尝试获取一个许可，若获取成功，则立即返回 true，若获取失败，则立即返回 false
  2. public boolean tryAcquire(long timeout, TimeUnit unit):尝试获取一个许可，若在指定的时间内获取成功，则立即返回 true，否则则立即返回 false
  3. public boolean tryAcquire(int permits):尝试获取 permits 个许可，若获取成功，则立即返回 true，若获取失败，则立即返回 false
  4. public boolean tryAcquire(int permits, long timeout, TimeUnit unit): 尝试获取 permits 个许可，若在指定的时间内获取成功，则立即返回 true，否则则立即返回 false
  5. 还可以通过 availablePermits()方法得到可用的许可数目。

参考代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
package com.sunld;

import java.util.concurrent.Semaphore;

/**
 * 例子：若一个工厂有5 台机器，但是有8个工人，
 * 一台机器同时只能被一个工人使用，只有使用完了，其他工人才能继续使用。
 * @author Theodore SUN
 */
public class TestSemaphore {

	public static void main(String[] args) {
		int N = 8;            //工人数
		Semaphore semaphore = new Semaphore(5); //机器数目
		for(int i=0;i<N;i++)
			new Worker(i,semaphore).start();
	}

	static class Worker extends Thread{
		private int num;
		private Semaphore semaphore;
		public Worker(int num,Semaphore semaphore){
			this.num = num;
			this.semaphore = semaphore;
		}
		@Override
		public void run() {
			try {
				semaphore.acquire();
				System.out.println("工人"+this.num+"占用一个机器在生产...");
				Thread.sleep(2000);
				System.out.println("工人"+this.num+"释放出机器");
				semaphore.release();
				} catch (InterruptedException e) {
					e.printStackTrace();
				}
		}
	}
	/**
	 * 工人0占用一个机器在生产...
	 * 工人1占用一个机器在生产...
	 * 工人2占用一个机器在生产...
	 * 工人3占用一个机器在生产...
	 * 工人5占用一个机器在生产...
	 * 工人0释放出机器
	 * 工人3释放出机器
	 * 工人7占用一个机器在生产...
	 * 工人5释放出机器
	 * 工人1释放出机器
	 * 工人2释放出机器
	 * 工人6占用一个机器在生产...
	 * 工人4占用一个机器在生产...
	 * 工人7释放出机器
	 * 工人4释放出机器
	 * 工人6释放出机器
	 */
}

其他

  1. CountDownLatch 和 CyclicBarrier 都能够实现线程之间的等待，只不过它们侧重点不同；CountDownLatch 一般用于某个线程 A 等待若干个其他线程执行完任务之后，它才执行；而 CyclicBarrier 一般用于一组线程互相等待至某个状态，然后这一组线程再同时执行；另外，CountDownLatch 是不能够重用的，而 CyclicBarrier 是可以重用的。
  2. Semaphore 其实和锁有点类似，它一般用于控制对某组资源的访问权限。

Semaphore 与 ReentrantLock

  1. Semaphore 基本能完成 ReentrantLock 的所有工作，使用方法也与之类似，
  2. 通过 acquire()与 release()方法来获得和释放临界资源。
  3. Semaphone.acquire()方法默认为可响应中断锁，与 ReentrantLock.lockInterruptibly()作用效果一致，也就是说在等待临界资源的过程中可以被Thread.interrupt()方法中断。
  4. Semaphore 也实现了可轮询的锁请求与定时锁的功能，除了方法名 tryAcquire 与 tryLock 不同，其使用方法与ReentrantLock几乎一致。
  5. Semaphore也提供了公平与非公平锁的机制，也可在构造函数中进行设定。
  6. Semaphore的锁释放操作也由手动进行，因此与ReentrantLock 一样，为避免线程因抛出异常而无法正常释放锁的情况发生，释放锁的操作也必须在 finally 代码块中完成。

Exchanger

Phaser

参考
