Java并发编程之Synchronized

特点

1. 任意非NULL对象当作锁
2. 独占式悲观锁
3. 可重入锁

Synchronized 语义

1. 同步语法，在JDK1.6之后增加了锁的优化，包括偏向锁、轻量锁、自旋
2. 代码块语义：编译之后在进入同步代码之前写入monitorenter字节码指令，执行完成写入monitorexit指令（异常退出的时候也会写入该指令）
3. 方法同步语义：ACC_SYNCHRONIZED
4. 锁对象：使用reference类型指明加锁和加锁的对象（自定义对象、this、当前class）
5. 锁计数：通过锁的计数器来判断是否释放锁，在执行monitorenter指令时，首先要去尝试获取对象的锁，获取锁或当前拥有锁则计数器+1；执行monitorexit指令时会将锁计数器的值减一；一旦计数器的值为零，锁随即就被释放了
6. 如果获取对象锁失败，那当前线程就应当被阻塞等待，直到请求锁定的对象被持有它的线程释放为止
7. 支持可重入，防止死锁
8. 独占锁，不能强制已经获取锁的线程释放锁；不能强制正在等待锁的线程中断等待或超时退出
9. 作用粒度：对象，用来实现临界资源的同步互斥访问

Synchronized 作用范围

1. 普通同步方法：使用当前实例锁定
2. 静态同步方法：锁是当前类的Class实例，Class数据存在永久代中，是该类的一个全局锁
3. 同步代码块：使用代码块中定义的对象（this、自定义对象、class对象）

Synchronized 核心组件

1. Wait Set：调用 wait 方法被阻塞的线程被放置在这里；
2. Contention List：竞争队列，所有请求锁的线程首先被放在这个竞争队列中；
3. Entry List：Contention List 中那些有资格成为候选资源的线程被移动到 Entry List 中；
4. OnDeck：任意时刻，最多只有一个线程正在竞争锁资源，该线程被称为 OnDeck；
5. Owner：当前已经获取到所资源的线程被称为 Owner；
6. !Owner：当前释放锁的线程。

ObjectMonitor() {
    _header       = NULL;  // markOop对象头
    _count        = 0;     // 重入次数
    _waiters      = 0,     // 等待线程数
    _recursions   = 0;     // 重入次数
    _object       = NULL;
    _owner        = NULL;  // 指向获得ObjectMonitor对象的线程
    _WaitSet      = NULL;  // 处于wait状态的线程，会被加入到waitset中
    _WaitSetLock  = 0 ;
    _Responsible  = NULL ;
    _succ         = NULL ;
    _cxq          = NULL ; // JVM为每个尝试进入synchronized代码段的线程创建一个ObjectWaiter并添加到该队列
    FreeNext      = NULL ;
    _EntryList    = NULL ; // 处于等待block状态的线程，由ObjectWaiter组成的双向链表
                           // JVM会从该链表中获取一个ObjectWaiter并唤醒对应的JavaThread
    _SpinFreq     = 0 ;
    _SpinClock    = 0 ;
    OwnerIsThread = 0 ;
    _previous_owner_tid = 0; // 监视器前一个拥有者的线程ID
  }

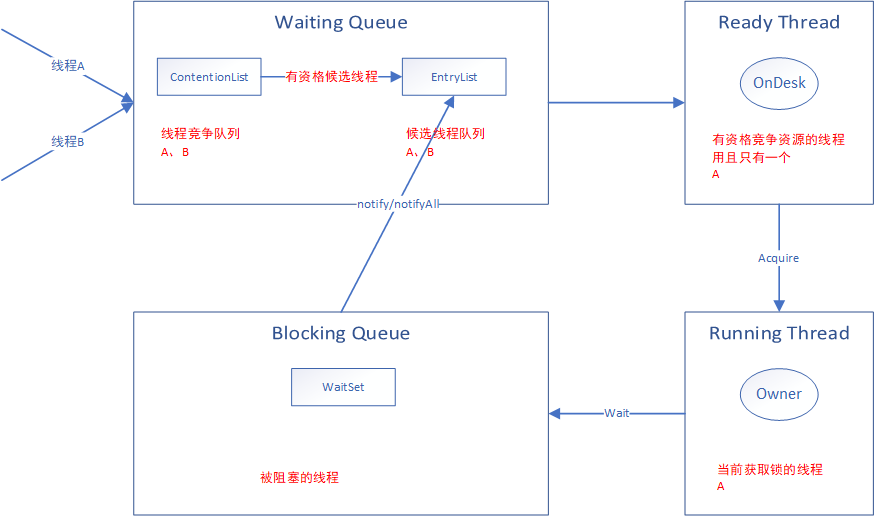

Synchronized 实现原理

重量锁的实现依赖于对象中的警示器monitor，本质依赖于操作系统中的Mutex Lock；

1. 线程首先会进入ContentionList队列，JVM复制部分线程到EntryList，JVM从EntryList的尾部获取后选择线程（OnDeck）
   • 为了解决并发进程引入EntryList队列（候选者竞争队列）
   • 处于 ContentionList、EntryList、WaitSet 中的线程都处于阻塞状态，该阻塞是由操作系统来完成的(Linux 内核下采用 pthread_mutex_lock 内核函数实现的);
2. 当进入OnDeck中的线程获取锁之后：
   • 修改_owner为当前线程
   • 修改markword（地址+状态10）
   • 阻塞后续线程到ContentionList
3. Owner释放锁或则阻塞：
   • 释放锁： 执行1（需要重新竞争锁、提高吞吐量，称为“竞争切换”）
   • 阻塞（wait）：转移到WaitSet，并且释放锁，只有notify 或者 notifyAll 唤醒，会重新进去EntryList中

代码

package com.sunld.thread.lock;

/**
 * @author : sunliaodong
 * @version : V1.0.0
 * @description: TODO
 * @date : 2020/5/30 19:00
 */
public class TestSynchronized {

    public synchronized static void test1(){

    }

    public synchronized void test2(){

    }

    public void test3(){
        synchronized(this){

        }
    }

    public static void test4(){
        synchronized(TestSynchronized.class){

        }
    }

    public static void main(String[] args) {

    }

}

javap分析

"C:\Program Files\Java\jdk1.8.0_152\bin\javap.exe" -v -c com.sunld.thread.lock.TestSynchronized
Classfile /D:/workspace/learning/target/classes/com/sunld/thread/lock/TestSynchronized.class
  Last modified 2020-5-30; size 834 bytes
  MD5 checksum 9806782e622d7e5e193f3d1b5b8cf61e
  Compiled from "TestSynchronized.java"
public class com.sunld.thread.lock.TestSynchronized
  minor version: 0
  major version: 52
  flags: ACC_PUBLIC, ACC_SUPER
Constant pool:
   #1 = Methodref          #3.#25         // java/lang/Object."<init>":()V
   #2 = Class              #26            // com/sunld/thread/lock/TestSynchronized
   #3 = Class              #27            // java/lang/Object
   #4 = Utf8               <init>
   #5 = Utf8               ()V
   #6 = Utf8               Code
   #7 = Utf8               LineNumberTable
   #8 = Utf8               LocalVariableTable
   #9 = Utf8               this
  #10 = Utf8               Lcom/sunld/thread/lock/TestSynchronized;
  #11 = Utf8               test1
  #12 = Utf8               test2
  #13 = Utf8               test3
  #14 = Utf8               StackMapTable
  #15 = Class              #26            // com/sunld/thread/lock/TestSynchronized
  #16 = Class              #27            // java/lang/Object
  #17 = Class              #28            // java/lang/Throwable
  #18 = Utf8               test4
  #19 = Utf8               main
  #20 = Utf8               ([Ljava/lang/String;)V
  #21 = Utf8               args
  #22 = Utf8               [Ljava/lang/String;
  #23 = Utf8               SourceFile
  #24 = Utf8               TestSynchronized.java
  #25 = NameAndType        #4:#5          // "<init>":()V
  #26 = Utf8               com/sunld/thread/lock/TestSynchronized
  #27 = Utf8               java/lang/Object
  #28 = Utf8               java/lang/Throwable
{
  public com.sunld.thread.lock.TestSynchronized();
    descriptor: ()V
    flags: ACC_PUBLIC
    Code:
      stack=1, locals=1, args_size=1
         0: aload_0
         1: invokespecial #1                  // Method java/lang/Object."<init>":()V
         4: return
      LineNumberTable:
        line 9: 0
      LocalVariableTable:
        Start  Length  Slot  Name   Signature
            0       5     0  this   Lcom/sunld/thread/lock/TestSynchronized;

  public static synchronized void test1();
    descriptor: ()V
    flags: ACC_PUBLIC, ACC_STATIC, ACC_SYNCHRONIZED
    Code:
      stack=0, locals=0, args_size=0
         0: return
      LineNumberTable:
        line 13: 0

  public synchronized void test2();
    descriptor: ()V
    flags: ACC_PUBLIC, ACC_SYNCHRONIZED
    Code:
      stack=0, locals=1, args_size=1
         0: return
      LineNumberTable:
        line 17: 0
      LocalVariableTable:
        Start  Length  Slot  Name   Signature
            0       1     0  this   Lcom/sunld/thread/lock/TestSynchronized;

  public void test3();
    descriptor: ()V
    flags: ACC_PUBLIC
    Code:
      stack=2, locals=3, args_size=1
         0: aload_0
         1: dup
         2: astore_1
         3: monitorenter
         4: aload_1
         5: monitorexit
         6: goto          14
         9: astore_2
        10: aload_1
        11: monitorexit
        12: aload_2
        13: athrow
        14: return
      Exception table:
         from    to  target type
             4     6     9   any
             9    12     9   any
      LineNumberTable:
        line 20: 0
        line 22: 4
        line 23: 14
      LocalVariableTable:
        Start  Length  Slot  Name   Signature
            0      15     0  this   Lcom/sunld/thread/lock/TestSynchronized;
      StackMapTable: number_of_entries = 2
        frame_type = 255 /* full_frame */
          offset_delta = 9
          locals = [ class com/sunld/thread/lock/TestSynchronized, class java/lang/Object ]
          stack = [ class java/lang/Throwable ]
        frame_type = 250 /* chop */
          offset_delta = 4

  public static void test4();
    descriptor: ()V
    flags: ACC_PUBLIC, ACC_STATIC
    Code:
      stack=2, locals=2, args_size=0
         0: ldc           #2                  // class com/sunld/thread/lock/TestSynchronized
         2: dup
         3: astore_0
         4: monitorenter
         5: aload_0
         6: monitorexit
         7: goto          15
        10: astore_1
        11: aload_0
        12: monitorexit
        13: aload_1
        14: athrow
        15: return
      Exception table:
         from    to  target type
             5     7    10   any
            10    13    10   any
      LineNumberTable:
        line 26: 0
        line 28: 5
        line 29: 15
      StackMapTable: number_of_entries = 2
        frame_type = 255 /* full_frame */
          offset_delta = 10
          locals = [ class java/lang/Object ]
          stack = [ class java/lang/Throwable ]
        frame_type = 250 /* chop */
          offset_delta = 4

  public static void main(java.lang.String[]);
    descriptor: ([Ljava/lang/String;)V
    flags: ACC_PUBLIC, ACC_STATIC
    Code:
      stack=0, locals=1, args_size=1
         0: return
      LineNumberTable:
        line 33: 0
      LocalVariableTable:
        Start  Length  Slot  Name   Signature
            0       1     0  args   [Ljava/lang/String;
}
SourceFile: "TestSynchronized.java"
