Java并发编程之ScheduledThreadPoolExecutor

任务执行

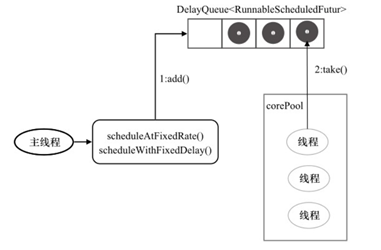

当调用ScheduledThreadPoolExecutor的scheduleAtFixedRate()方法或者scheduleWith-FixedDelay()方法时，会向ScheduledThreadPoolExecutor的DelayQueue添加一个实现了RunnableScheduledFuture接口的ScheduledFutureTask。

/**
 * @throws RejectedExecutionException {@inheritDoc}
 * @throws NullPointerException       {@inheritDoc}
 */
public ScheduledFuture<?> schedule(Runnable command,
                                   long delay,
                                   TimeUnit unit) {
    if (command == null || unit == null)
        throw new NullPointerException();
    RunnableScheduledFuture<?> t = decorateTask(command,
        new ScheduledFutureTask<Void>(command, null,
                                      triggerTime(delay, unit)));
    delayedExecute(t);
    return t;
}

/**
 * Main execution method for delayed or periodic tasks.  If pool
 * is shut down, rejects the task. Otherwise adds task to queue
 * and starts a thread, if necessary, to run it.  (We cannot
 * prestart the thread to run the task because the task (probably)
 * shouldn't be run yet.)  If the pool is shut down while the task
 * is being added, cancel and remove it if required by state and
 * run-after-shutdown parameters.
 *
 * @param task the task
 */
private void delayedExecute(RunnableScheduledFuture<?> task) {
    if (isShutdown())
        reject(task);
    else {
        super.getQueue().add(task);
        if (isShutdown() &&
            !canRunInCurrentRunState(task.isPeriodic()) &&
            remove(task))
            task.cancel(false);
        else
            ensurePrestart();
    }
}

线程池中的线程从DelayQueue中获取ScheduledFutureTask，然后执行任务。

ScheduledThreadPoolExecutor为了实现周期性的执行任务，对ThreadPoolExecutor做了如下的修改。
❑ 使用DelayQueue作为任务队列。
❑ 获取任务的方式不同（后文会说明）。
❑ 执行周期任务后，增加了额外的处理。

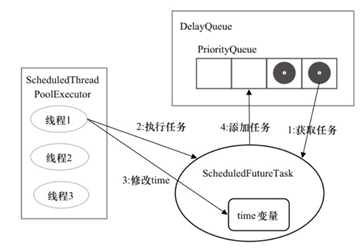

任务执行过程

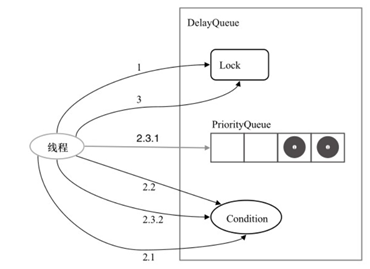

1）线程1从DelayQueue中获取已到期的ScheduledFutureTask（DelayQueue. take()）。到期任务是指ScheduledFutureTask的time大于等于当前时间。

/**
 * Retrieves and removes the head of this queue, waiting if necessary
 * until an element with an expired delay is available on this queue.
 *
 * @return the head of this queue
 * @throws InterruptedException {@inheritDoc}
 */
public E take() throws InterruptedException {
    final ReentrantLock lock = this.lock;
    // 1 获取lock锁
    lock.lockInterruptibly();
    try {
        for (;;) {
            E first = q.peek();
            if (first == null)
            	// 2.1：如果PriorityQueue为空，则当前Condition available等待
                available.await();
            else {
                long delay = first.getDelay(NANOSECONDS);
                if (delay <= 0)
                	// 2.3.1 返回PriorityQueue中的头元素
                    return q.poll();
                first = null; // don't retain ref while waiting
                if (leader != null)
                    available.await();
                else {
                    Thread thisThread = Thread.currentThread();
                    leader = thisThread;
                    try {
                    	// 2.2
                        available.awaitNanos(delay);
                    } finally {
                        if (leader == thisThread)
                            leader = null;
                    }
                }
            }
        }
    } finally {
        if (leader == null && q.peek() != null)
        	//2.3.2 唤醒Condition available等待的线程
            available.signal();
        //3
        lock.unlock();
    }
}

2）线程1执行这个ScheduledFutureTask。
3）线程1修改ScheduledFutureTask的time变量为下次将要被执行的时间。

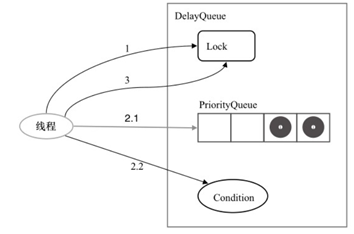

4）线程1把这个修改time之后的ScheduledFutureTask放回DelayQueue中（Delay-Queue.add()）。

/**
 * Inserts the specified element into this delay queue.
 *
 * @param e the element to add
 * @return {@code true}
 * @throws NullPointerException if the specified element is null
 */
public boolean offer(E e) {
    final ReentrantLock lock = this.lock;
    lock.lock(); //1
    try {
        q.offer(e); //2.1
        if (q.peek() == e) {
            leader = null;
            // 2.2如果在上面2.1中添加的任务是PriorityQueue的头元素，唤醒在Condition中等待的所有线程。
            available.signal();
        }
        return true;
    } finally {
        lock.unlock();//3
    }
}

实例

package com.sunld.thread;

import java.util.concurrent.Executors;
import java.util.concurrent.ScheduledExecutorService;
import java.util.concurrent.TimeUnit;

public class ScheduledExecutorService1 {

	public static void main(String[] args) {
		ScheduledExecutorService scheduledThreadPool = Executors.newScheduledThreadPool(3);
		scheduledThreadPool.schedule(new Runnable() {
			@Override
			public void run() {
				System.out.println("延迟三秒");
			}
		}, 3, TimeUnit.SECONDS);
		scheduledThreadPool.scheduleAtFixedRate(new Runnable() {
			@Override
			public void run() {
				System.out.println("延迟 1 秒后每三秒执行一次");
			}
		}, 1, 3, TimeUnit.SECONDS);
	}
}
